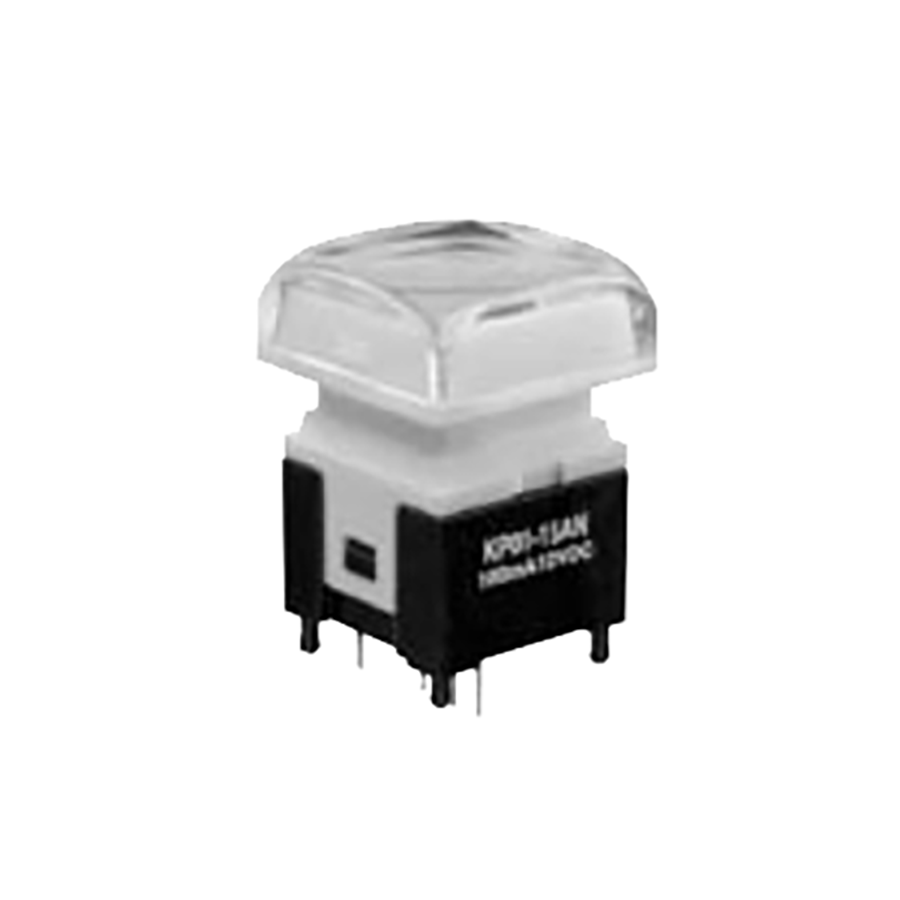

KP0115ANBKG03RGB-3SJB
Manufacturer:
NKK Switches
Mfr.Part #:
KP0115ANBKG03RGB-3SJB
Datasheet:
Description:
Pushbutton Switches Through Hole OFF - (ON) Square Button LED Standard Current Rating:100 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 17.4 mm |
| Termination | PC Pin |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 12 V |
| Packaging | Bulk |
| Depth | 17.4 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Stainless Steel |
| Type | Standard |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94 V-0 |
| Illumination Color | Blue, Green, Red |
| Throw Configuration | SPST |
| Housing Material | Glass fibre |
| Switch Function | OFF - (ON) |
| Illumination Type | LED |
| Electrical Life | 5 Mcycles |
| Actuator Material | Polyacetal |
| Mechanical Life | 5 Mcycles |
| Contact Current Rating | 100 mA |
| Actuator Type | Square Button |
| Termination Style | PC Pin |
| Cap Color | White |
| Illumination Voltage | 2 V |
Stock: 1
Distributors
pcbx
pcbxUnit Price$20.96560
Ext.Price$20.96560
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $20.96560 | $20.96560 |
